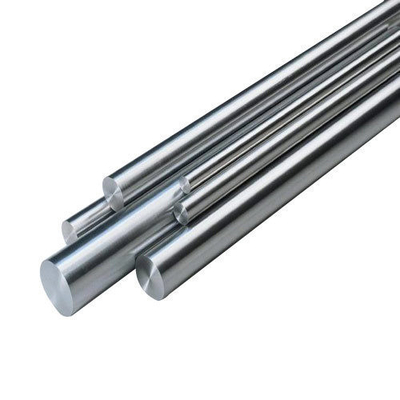

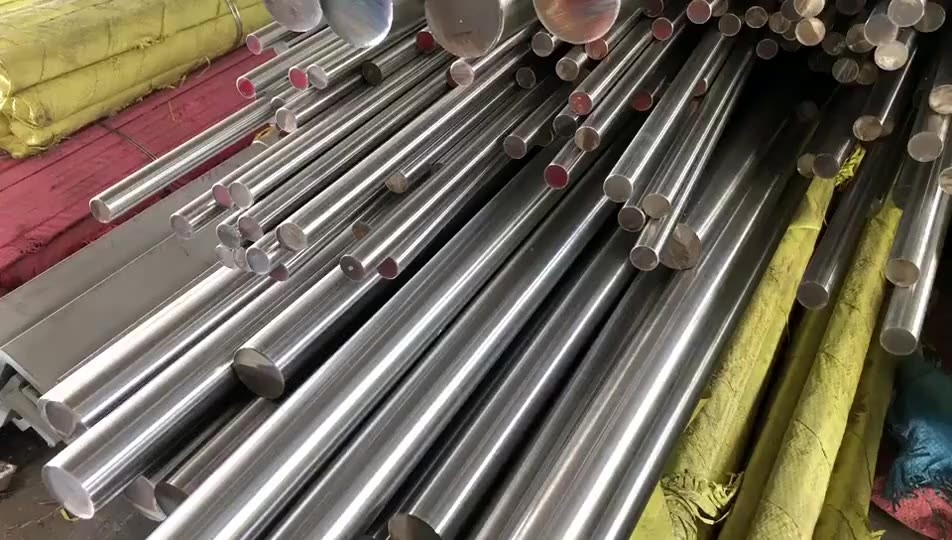

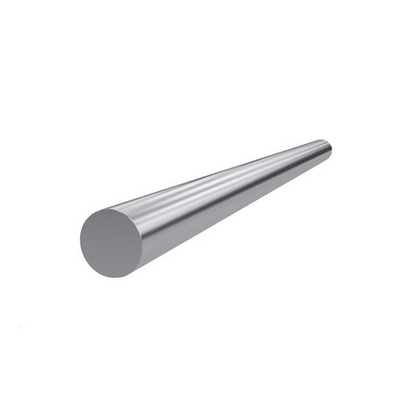

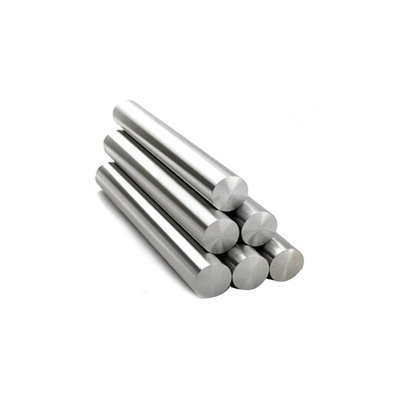

Silver monel Alloy 400 Round Bar cold rolled for Ship building
Product Details:
| Place of Origin: | Jiangsu, China |
| Brand Name: | tgpx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | $1,000.00 - $3,000.00/Tons |
| Packaging Details: | Standard packing with plastic bags and strapped bundles, and can be customized; In bundles tied with steel strips. End plastic caps, external packing by PVC bags and knit bags for Factory Bulk Price 304 Stainless Steel Plate 3mm Thickness. |
| Supply Ability: | 20000 Ton/Tons per Month |
|
Detail Information |
|||
| Type: | Nickel Bar | Application: | Used In Chemical, Oil, Marine Industry |
|---|---|---|---|
| Grade: | Monel/Inconel/Hastelloy/Nickel Alloy | Ni (Min): | 63% |
| Resistance (μΩ.m): | 1.5 | Powder Or Not: | Not Powder |
| Ultimate Strength (≥ MPa): | 730 | Elongation (≥ %): | 40 |
| Color: | Silver | Shape: | Plate/sheet/bar/pipe |
| Payment Term: | T/T | Package: | Standard Sea Worthy Package |
| Usage: | Ship Building | Technology: | Cold Rolled |
| Packing: | Wooden Pallet Or According To Customer's Request | Port: | Shanghai Or Tianjin |
| High Light: | Monel Alloy 400 Round Bar,Alloy 400 Round Bar Cold Rolled,Ship Building monel 400 bar |
||
Product Description
Professional Manufacturer monel 400 round bar
Can be delivered 5,000 tons per month, support sea, air, land transportation
monel 400 has approximately twice the tensile strength and triple the yield strength of Alloy 400. The strength of monel 400 is maintained to 1200 degrees Fahrenheit, but stays ductile and tough down to temperatures of -400 degrees Fahrenheit. Alloy K-500 also stays non-magnetic to -200 degrees Fahrenheit.
Compared with Monel 400,monel 400 has more good mechanical properties,hardness,corrosion resistance performance and long term stability.
It is widely used on many aspects,like pump shafts,oil well tools and instruments,doctor blades and scrapers,springs,valve trim,faseners,and marine propeller shafts.
monel 400 International brand:
|
Grade |
USA |
GE |
|
|
UNS |
SEW VDIUV |
|
|
|
Monel K500 |
N05500 |
W.Nr.2.4375 |
|
Chemical Composition:
|
Grade |
Ni% |
Cu% |
Al% |
Ti% |
Fe% |
Mn% |
S% |
C% |
Si% |
|
Monle K500 |
Min63 |
27-33 |
2.3-3.15 |
0.35-0.85 |
Max2 |
Max1.5 |
Max0.01 |
Max0.25 |
Max0.5 |
Physical Properties:
|
Grade |
Density |
Melting Point |
|
Monel K500 |
8.05 g/cm3 |
1288°C-1343°C |
Mechanical Properties:
|
Alloy |
Tensile Strength Rm N/mm2 |
Yield strength RP0.2N/mm2 |
Elongation A5 % |
|
Monel K500 |
1100 |
790 |
20 |
Production Standard:
|
Monel K500 |
Bar |
Wire |
Sheet/Strip |
Forging |
Welding Wire |
|
Standard |
ASTM B865 |
AMS4676 |
ASTM B865 |
ASTM B564 |
ERNiCu-7 |
Monel Form:Pipe / Tube(welded and seamless),Plate / Sheet,Bar,Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Jiangsu Taigang Puxin Stainless Steel Co., Ltd. is a sophisticated manufacturer of steel products. It’s located in Wuxi, which is the biggest base of stainless steel products in China and is also near to Shanghai. We have been devoted in steel industry for nearly 10 years and developed many faithful clients in Europe, South America, Mid-East, India and etc. We have a wide range of stainless steel products. Other metal products are also available if customers require. The annual export volume is about 1000,000 tons. And we promised almost all inquiry will be dealed with within 3 hours. "Punctuality,Integrity, Humanization service” has always been the development principle that strictly adhered by our company and all stuff all the time.
At present, we have five finishing rolling production lines and two hot rolling production lines . Further more advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll channeling roll system and other effective measures are adopted to guarantee product quality. Well-equipped production lines and advanced control systems work together to make sure all the stainless steel products we made are in line with the national standards.
1.Q: Are you trading company or manufacturer ?
A: We are manufactory that specialized in stainless steel products.
2.Q: How long is your delivery time?
A:It takes around 3-5 days for the regular models, and 7 to 10 working days for the special sizes and processing. It is based on the order quantity and requirement..
3.Q: Do you provide samples ? Is it free or extra ?
A:Yes, we would send you small samples for free and need around 4 to 6 days.
4.Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
5.Q: How do you protect the stainless steel sheet surface?
A: We have a high request for our quality, and each plate must have the second layer PVC laser film, one layer is 7C thick, double lays are 14c thick.
6.Q: What is the usage of your products?
A: It is widely used for elevator and kitchen decoration, Luxury door , wall panel and indoor decoration, advertising board, ceiling corridor, hotel hall, storage rack and kinds of entertainment places, etc.
7.Q: Do you have any assurance for your products?
A: It will have the mill test for quality and material report for each shipment.
