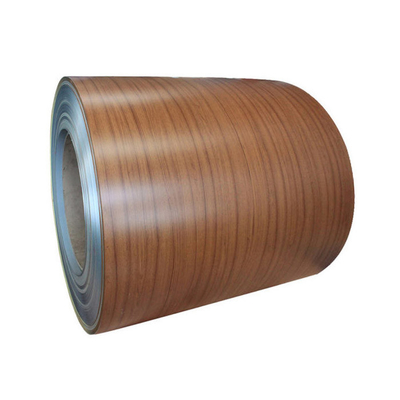

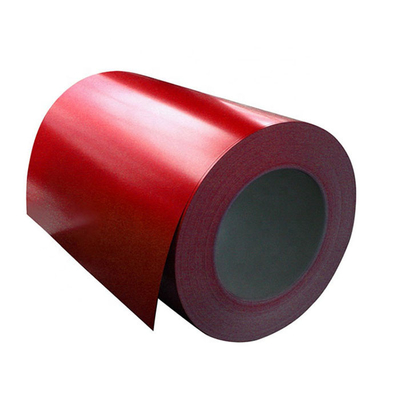

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TGPX

Payment & Shipping Terms:

Minimum Order Quantity: 1ton
Price: $500 - $700/Tons
Packaging Details: Tied up with steel strips and wrapped with water proof paper<br><br>thick plates are packed separately, thin plate are packed in bundles
Supply Ability: 20000 Ton/Tons per Month
Get Best Price Contact Now

Detail Information

Product Name: Ral 9016 3002 5005 Ppgi Coil Zinc Coat Galvanized Coil Ppgl Dx51d Z275 Galvanized Steel Sheet Keyword: PPGI PPGL
Shape: Coil Zinc Coating: Z30-275g
Sample: Avaliable Packing: Seaworthy Package
Delivery Time: Within 15-20days Color: RAL Color/As Your Request
Grade: DX51D SGCC DX52D SGCD1 DX53D Hardness: Full Hard
Payment Term: T/T & L/C Standard: ASTM
High Light:

Ral9016 PPGL Steel Coil

,

Dx51d Z275 PPGL Steel Coil

,

PPGL Steel Coil Zinc Coat

Product Description

0.2 Ral9016 3002 5005 Ppgi Coil Zinc Coat Galvanized Coil Ppgl Dx51d Z275 Prepainted Galvanized Steel Sheet

Specification
According to your request, each size can be selected for different application. Please contact us !
Name
Prepainted galvanized steel/ppgi/ color coated steel coil
PPGI Thickness
0.15mm-1.2mm
PPGI Width
750mm-1250mm ,also available for strip 28mm-600mm
PPGI Color
According to RAL color or clients sample
Painting Thickness
PE paint top coating 15-25micron , back coating is 5-10micron
if back coating is double ,thickness can be 22micron
Zinc Coating
99% pure zinc coating ,zinc weight from 40GSM to 275 GSM
Quality Control
SGS testing , test zinc coating thickness/PE coating thickness/ T testing and others by every coil
PPGI Package
water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing , side guard plate , then wrapped by seven steel belt .
Primer coating
8-30/5-30um



Product Introduction
PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil, It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction, decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester, polyvinyl chloride plastisol, polyvinylidene chloride, and the like.



0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 00.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 10.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 2




Our products

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 4

Company Profile

           0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 6

          Jiangsu Taigang Puxin Stainless Steel Co., Ltd. is a sophisticated manufacturer of steel products. It’s located in Wuxi, which is the biggest base of stainless steel products in China and is also near to Shanghai. We have been devoted in steel industry for nearly 10 years and developed many faithful clients in Europe, South America, Mid-East, India and etc. We have a wide range of stainless steel products. Other metal products are also available if customers require. The annual export volume is about 1000,000 tons. And we promised almost all inquiry will be dealed with within 3 hours. "Punctuality,Integrity, Humanization service” has always been the development principle that strictly adhered by our company and all stuff all the time.

          At present, we have five finishing rolling production lines and two hot rolling production lines . Further more advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll channeling roll system and other effective measures are adopted to guarantee product quality.  Well-equipped production lines and advanced control systems work together to make sure all the stainless steel products we made are in line with the national standards.

Processing Equipmnet

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 7

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 8

Packing

0.2 Ral9016 3002 PPGL Steel Coil Zinc Coat Galvanized Dx51d Z275 Prepainted 9

FAQ

1.Q: Are you trading company or manufacturer ?

A: We are manufactory that specialized in stainless steel products.



2.Q: How long is your delivery time?

A:It takes around 3-5 days for the regular models, and 7 to 10 working days for the special sizes and processing. It is based on the order quantity and requirement..



3.Q: Do you provide samples ? Is it free or extra ?

A:Yes, we would send you small samples for free and need around 4 to 6 days.



4.Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.



5.Q: How do you protect the 201 stainless steel sheet surface?

A: We have a high request for our quality, and each plate must have the second layer PVC laser film, one layer is 7C thick, double lays are 14c thick.



6.Q: What is the usage of your products?

A: It is widely used for elevator and kitchen decoration, Luxury door , wall panel and indoor decoration, advertising board, ceiling corridor, hotel hall, storage rack and kinds of entertainment places, etc.



7.Q: Do you have any assurance for your products?

A: It will have the mill test for quality and material report for each shipment.
